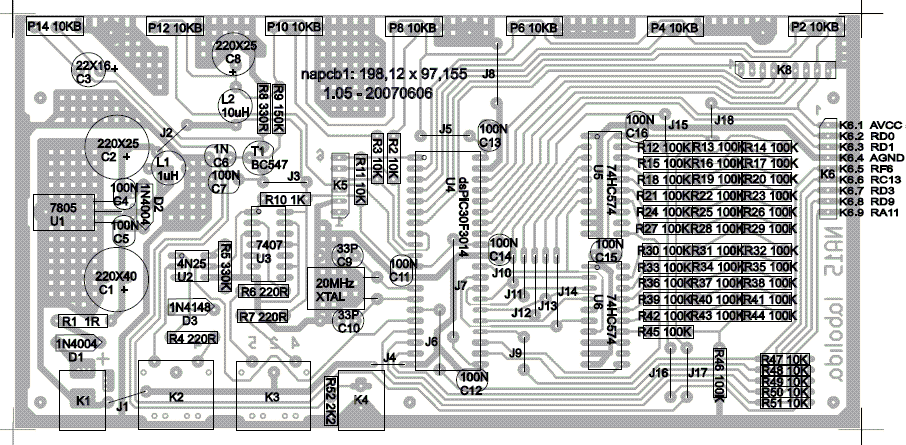

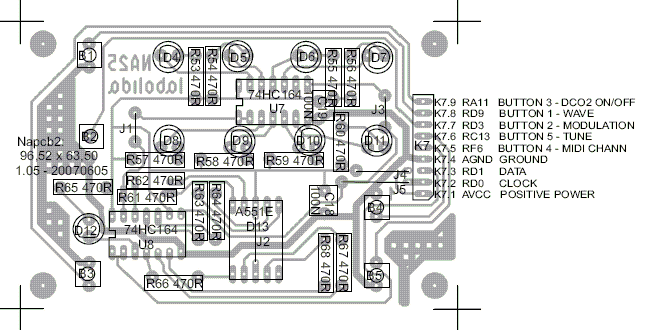

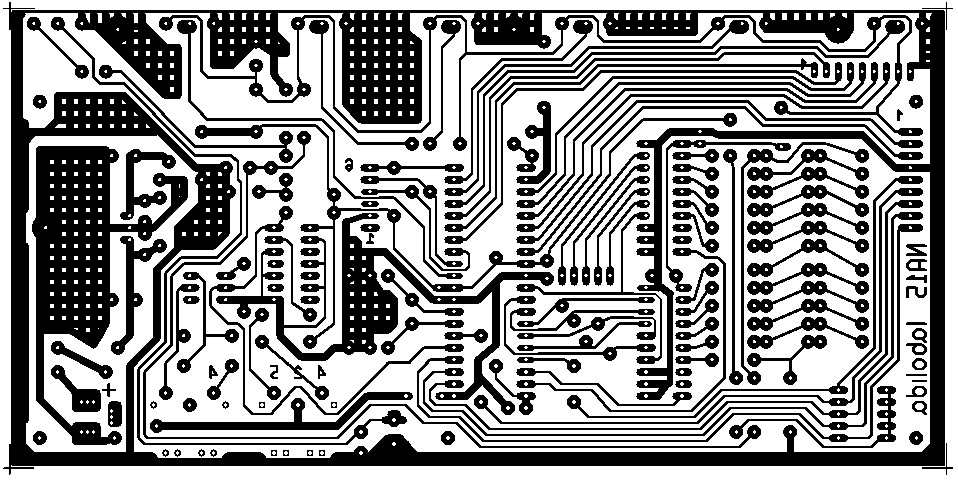

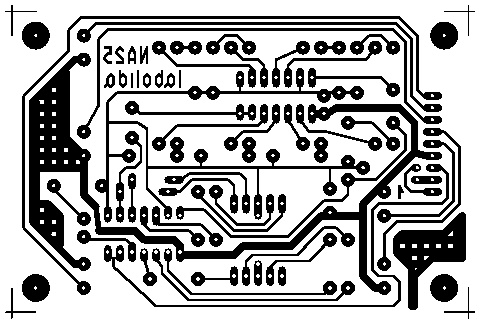

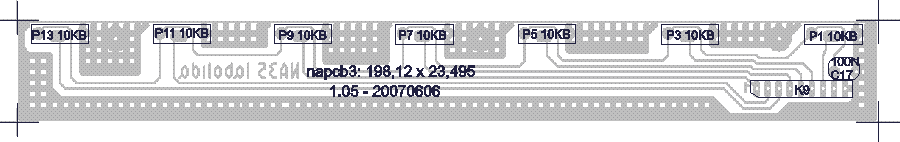

english portuguese spanish nano 1    schema    code    samples    manual tiny synth    schema    code    samples	schemas and technical data signal processor schema - PDF format control panel schema - PDF format components in the main board - GIF format components in the display board - GIF format components in the potentiometers board - GIF format main printboard - GIF format display printboard - GIF format part list - TXT format Schemas corresponding to the 'open' version. commercial version site
