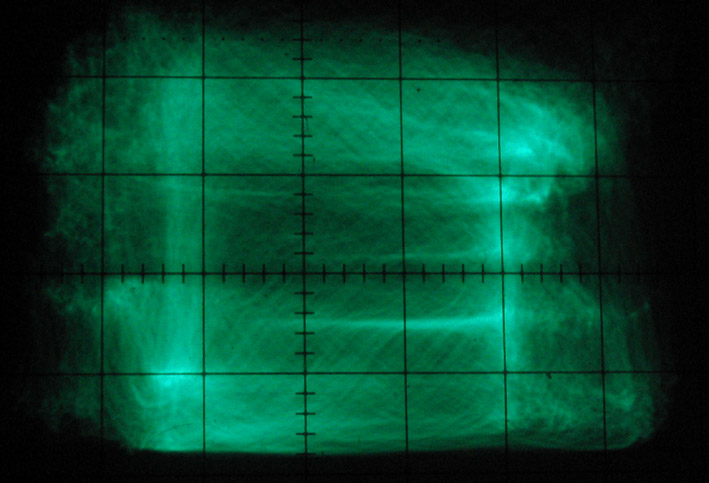

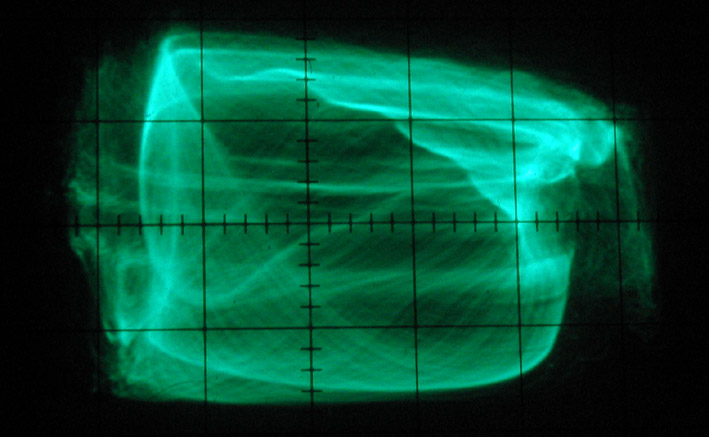

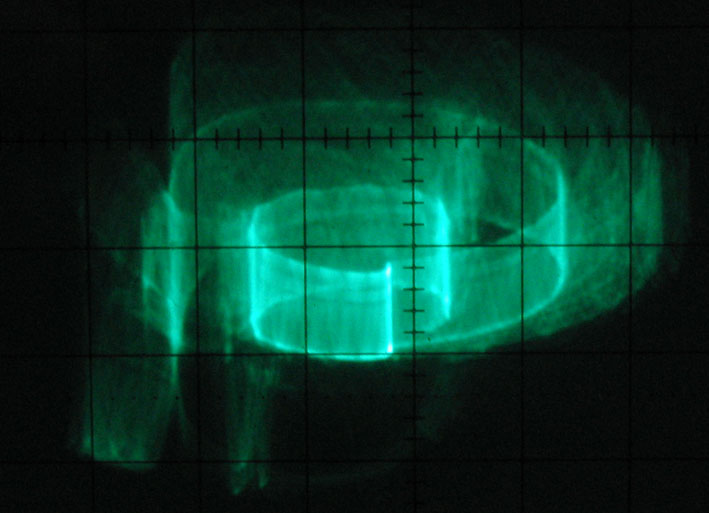

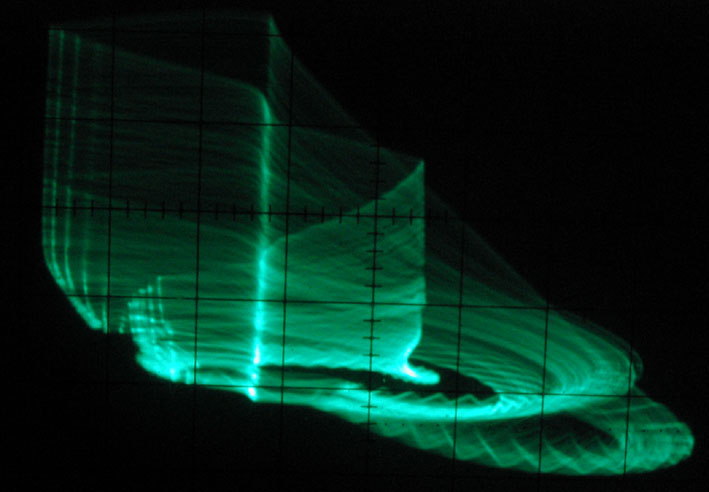

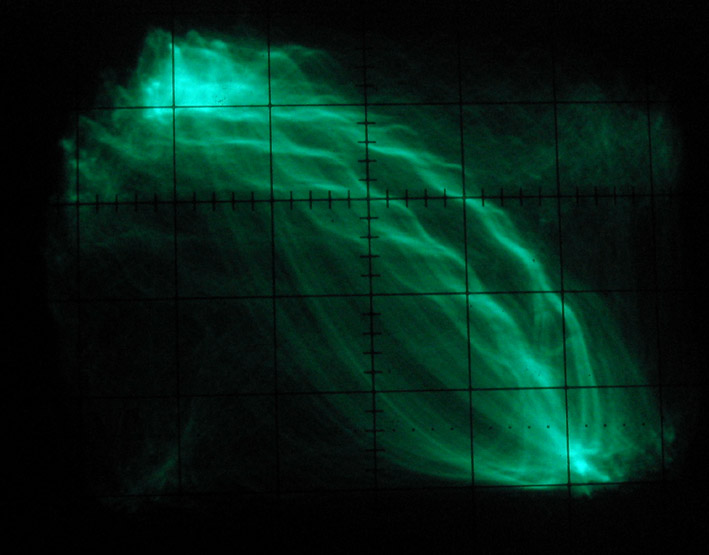

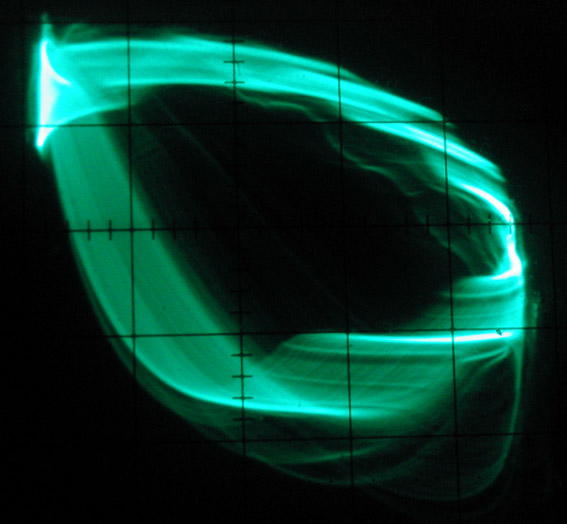

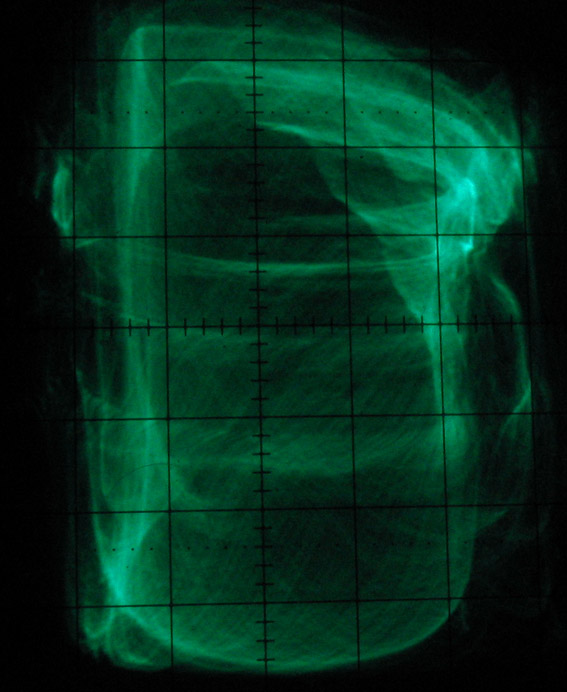

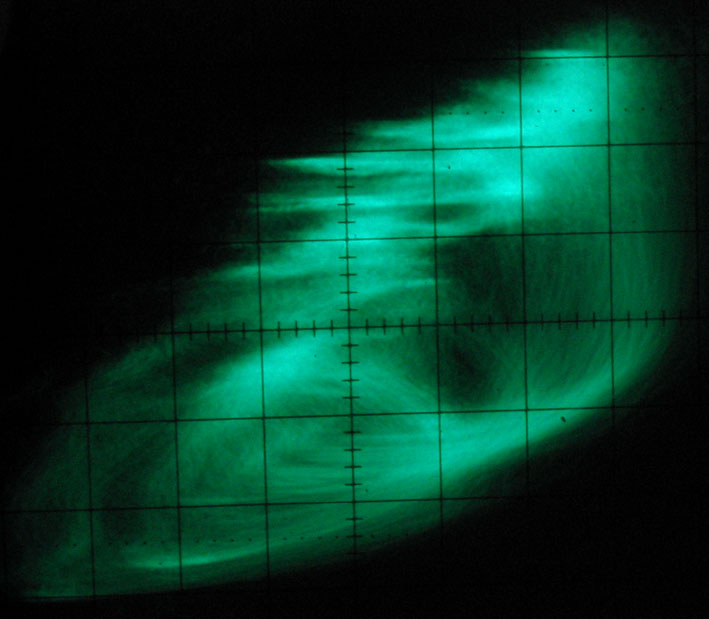

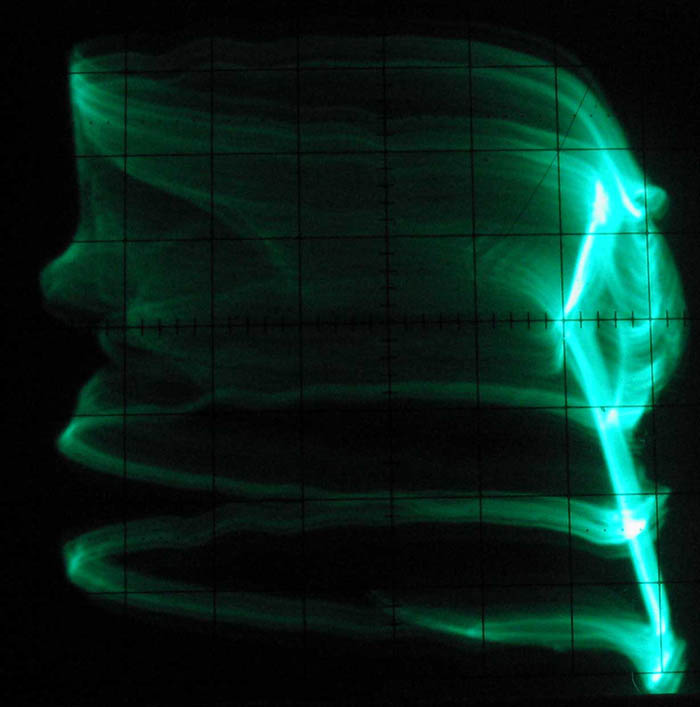

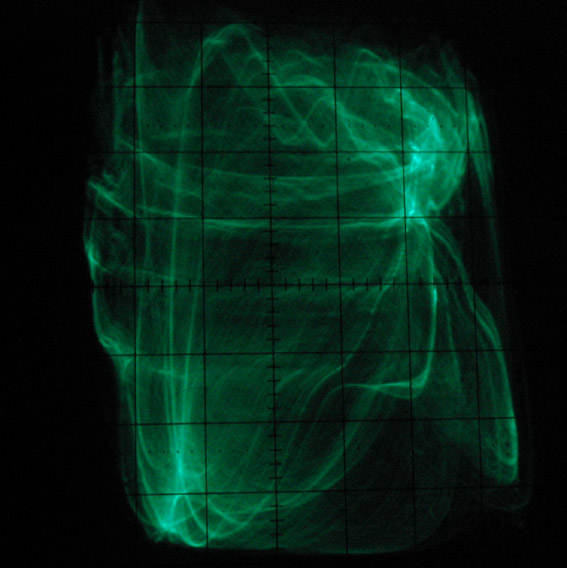

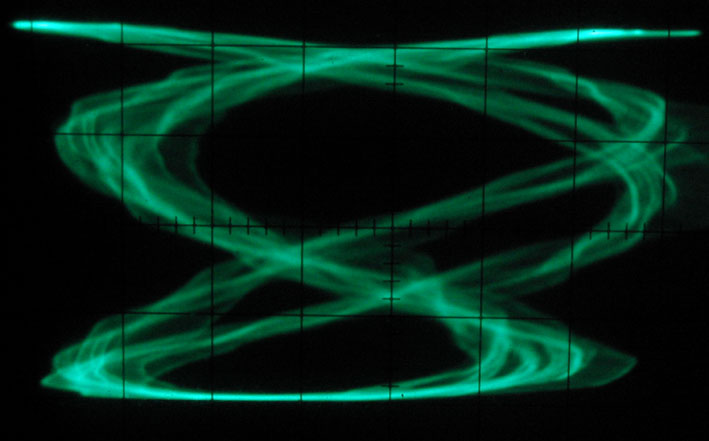

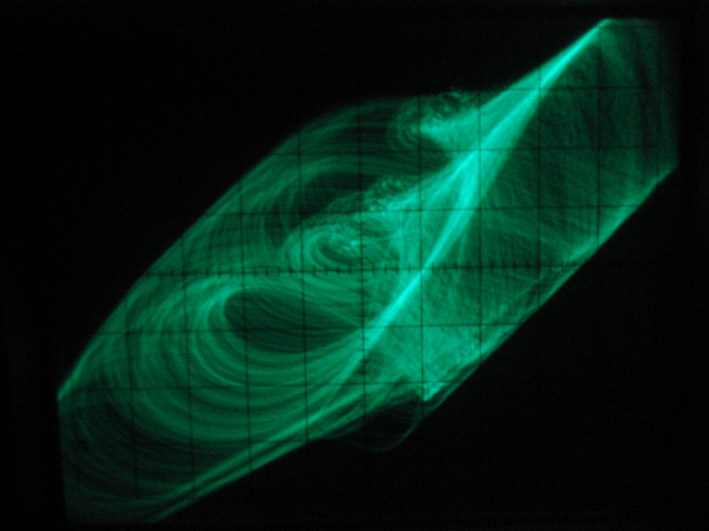

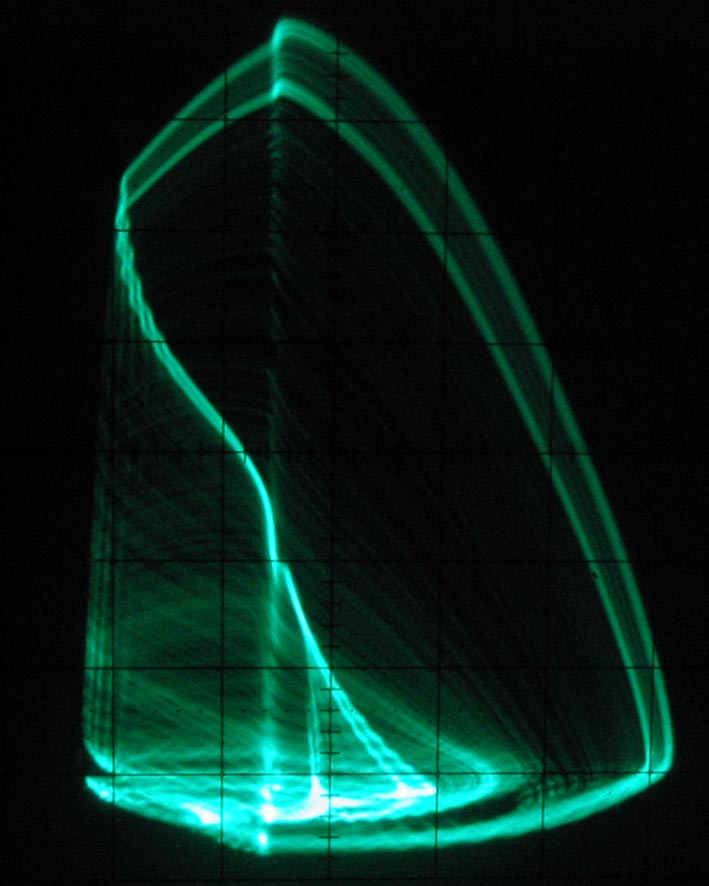

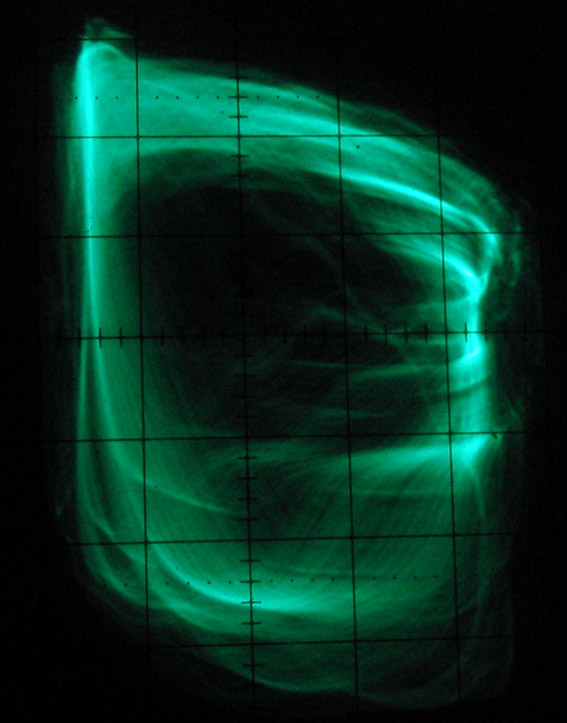

These are some shots of the output of a simple chaotic circuit. The circuit is an evolution of the original Chua's circuit, it has two inductors (actually one is a gyrator) and the nonlinear element is performed by a memristor mimicking circuit.
Aug 2010

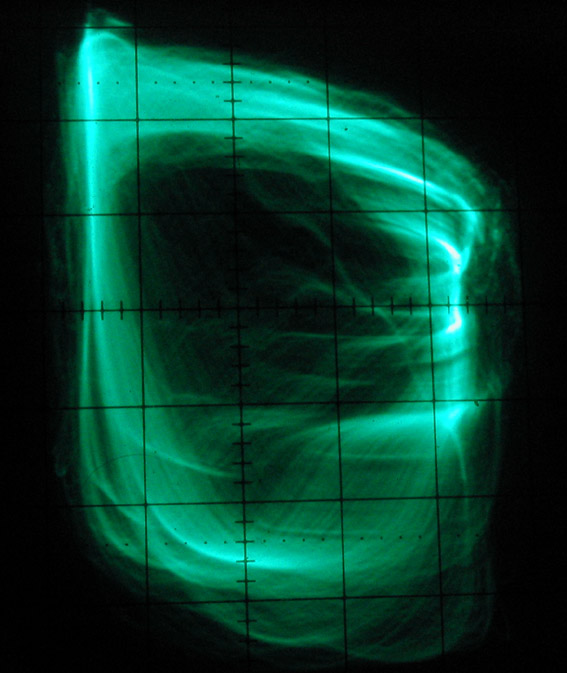

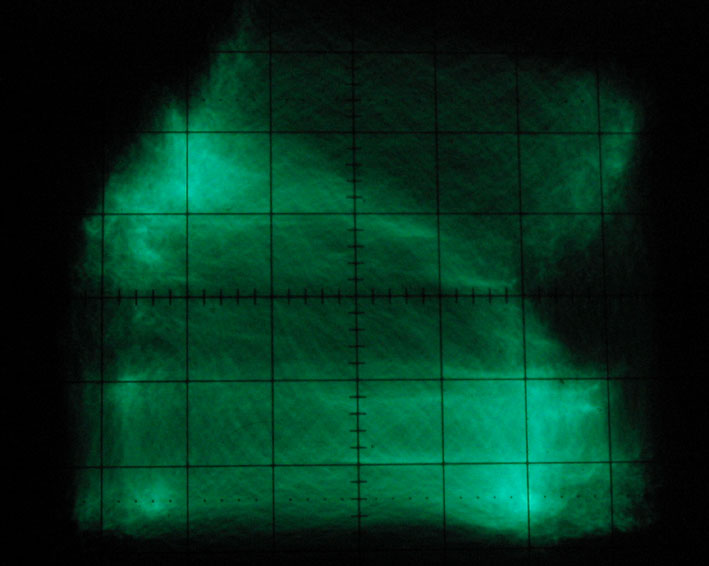

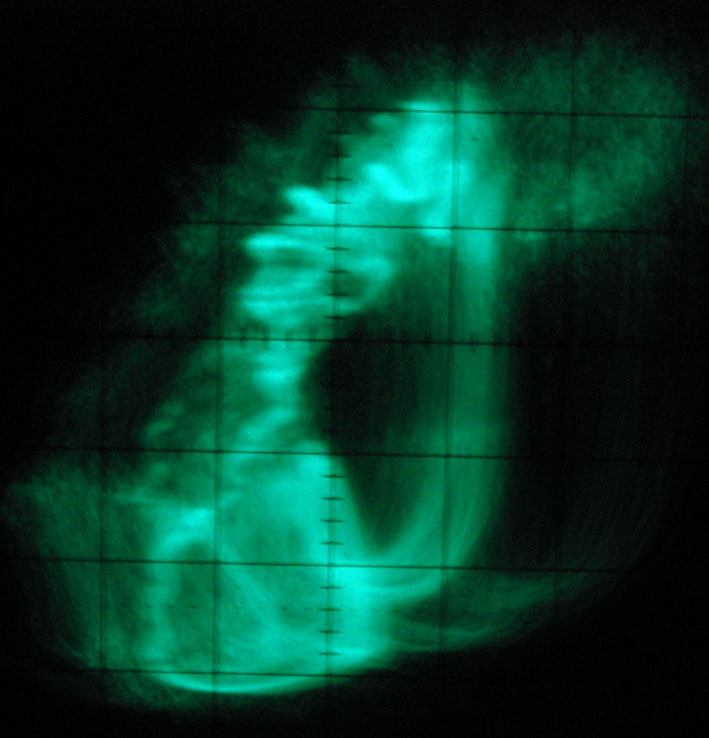

L2 = 1H, R = 918

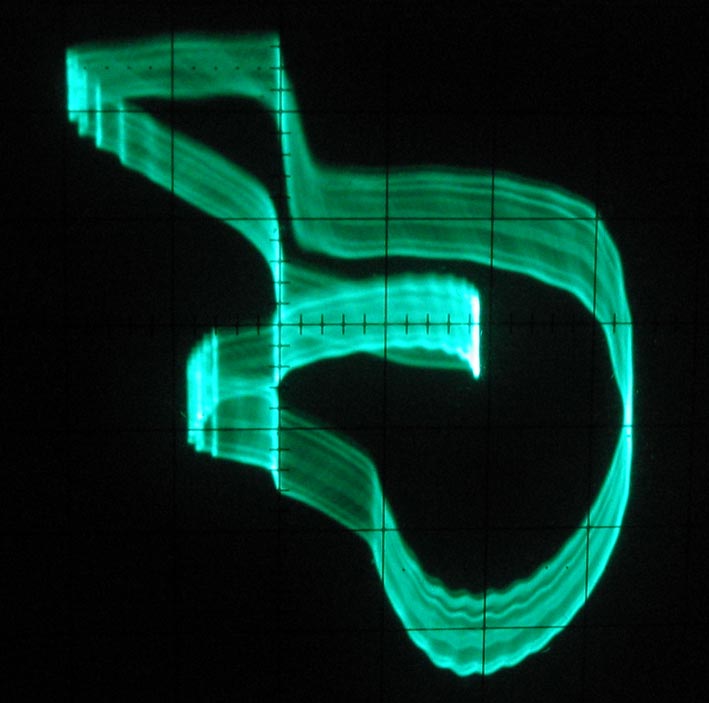

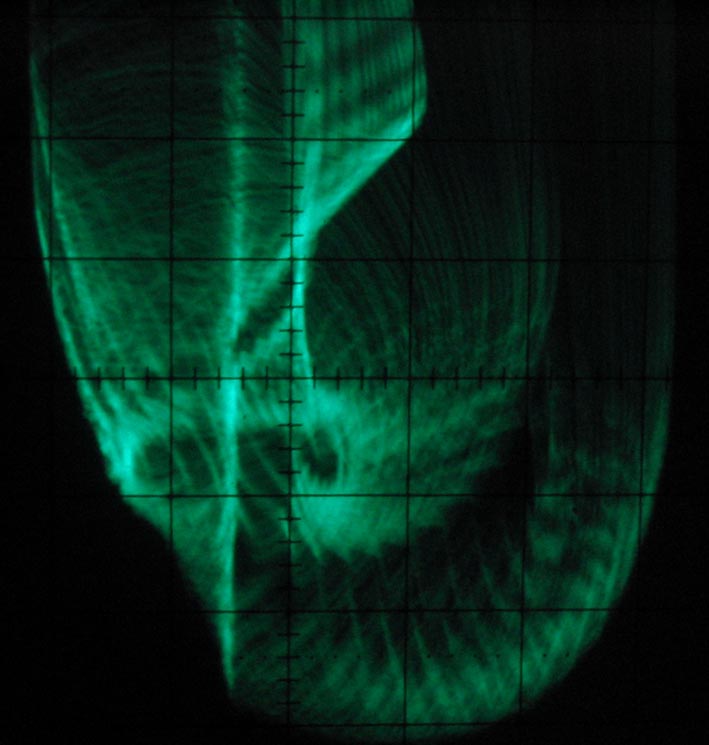

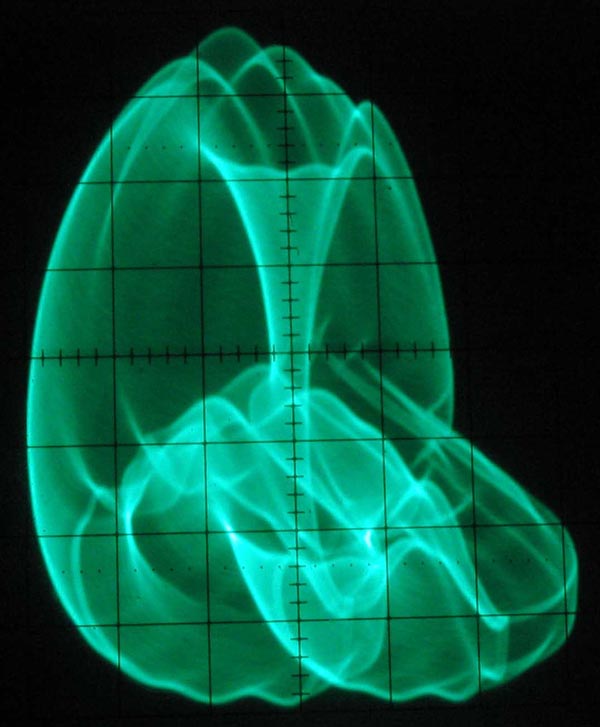

L2 = 180mH, R = 250

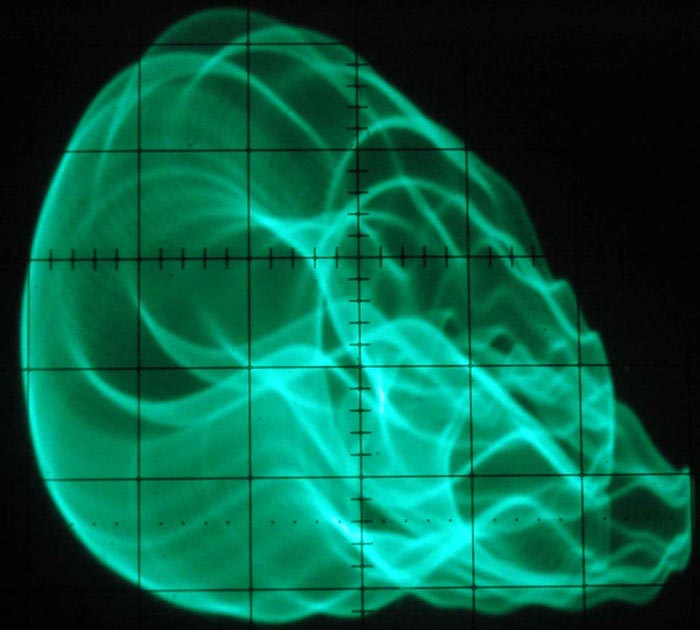

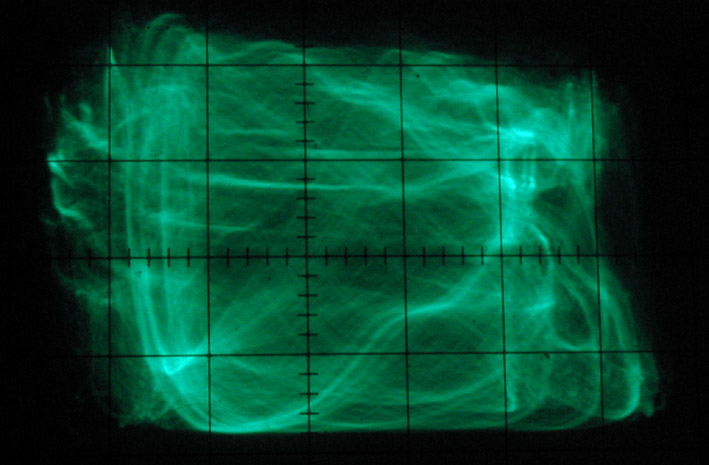

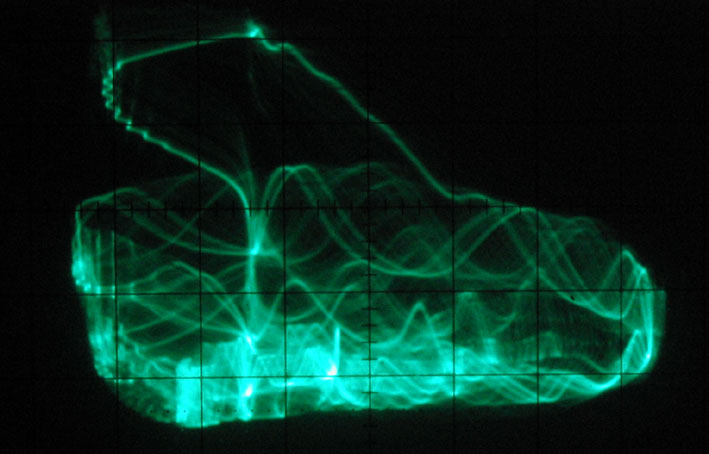

C2=100nF, L1 = 12mH, L2 = 570mH, R = 350

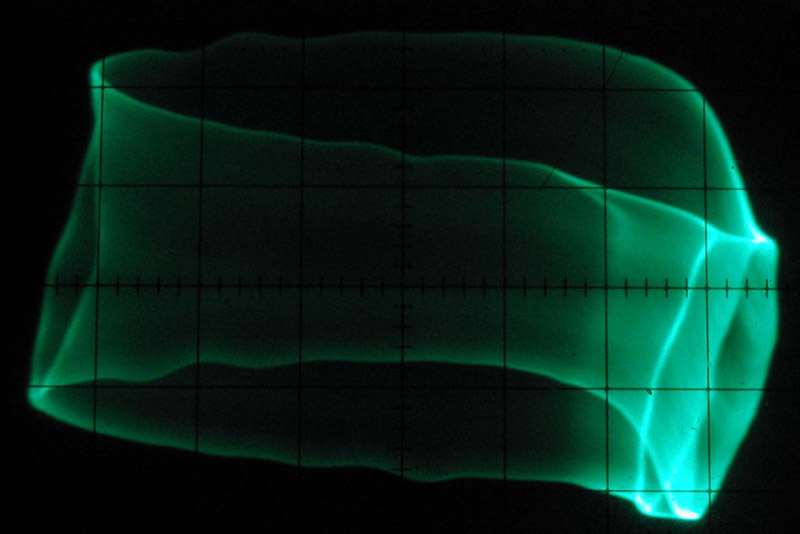

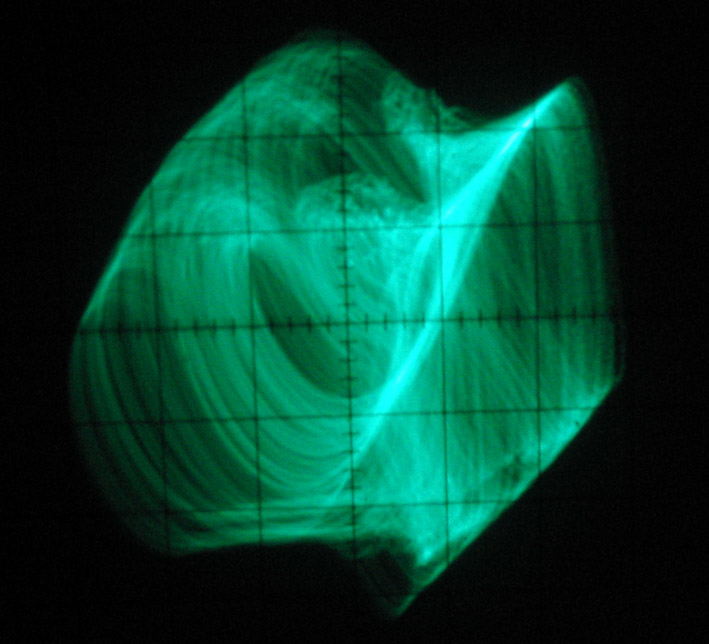

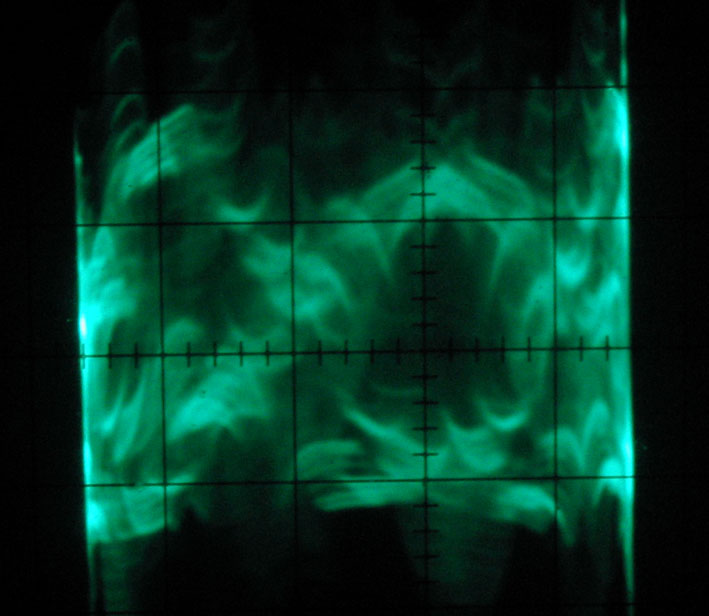

C2=100nF, L1 = 12mH, L2 = 570mH, R = 400

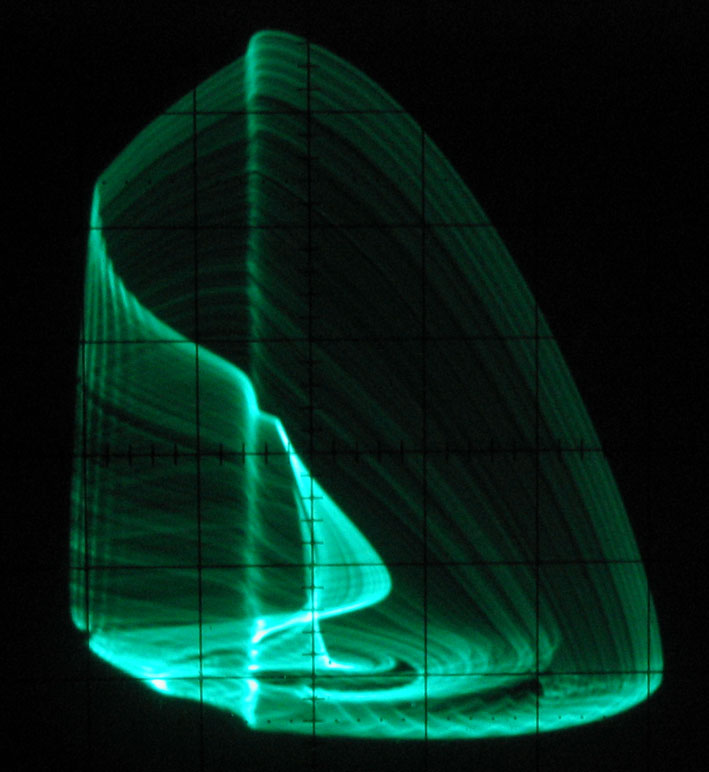

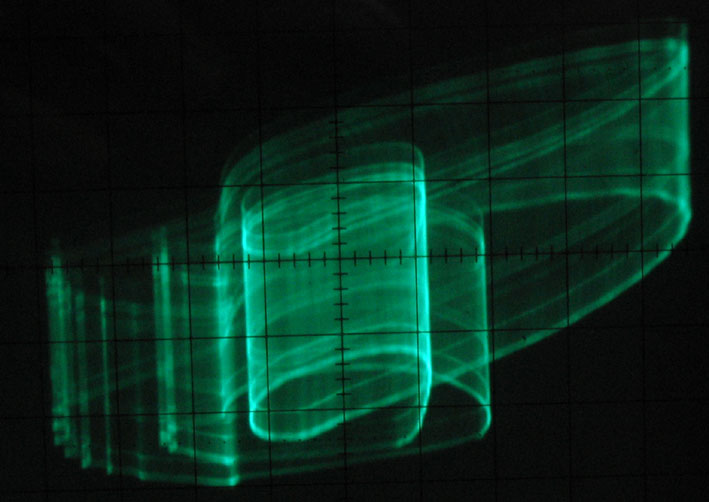

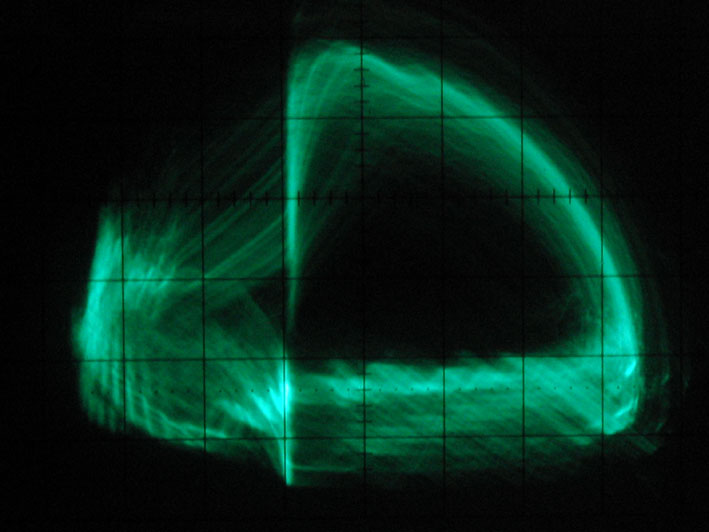

C2=100nF, L1 = 12mH, L2 = 570mH, R = 500

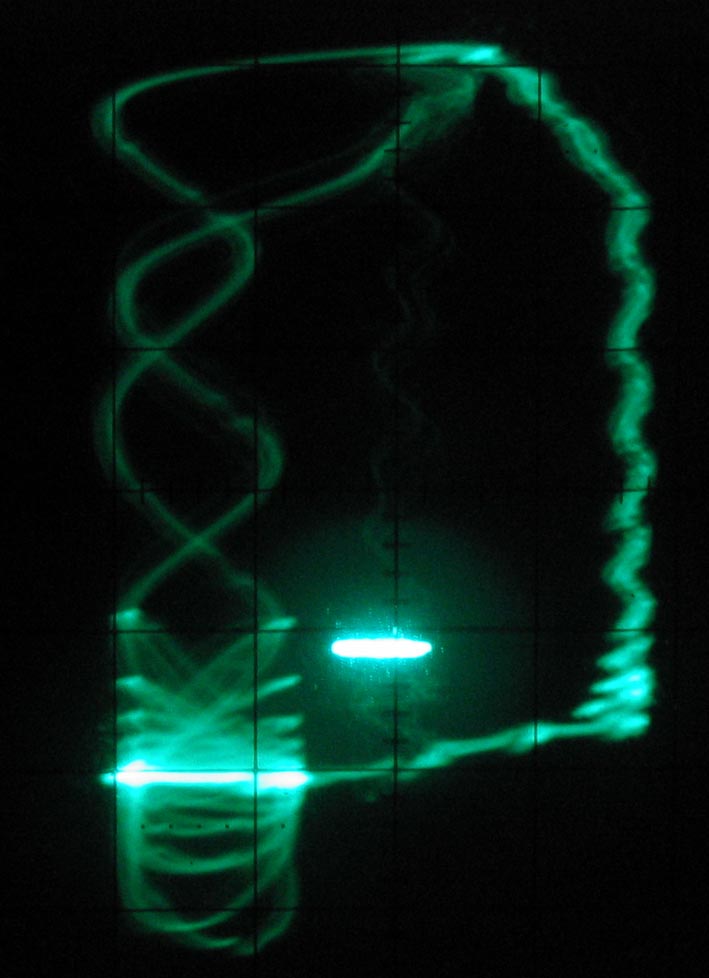

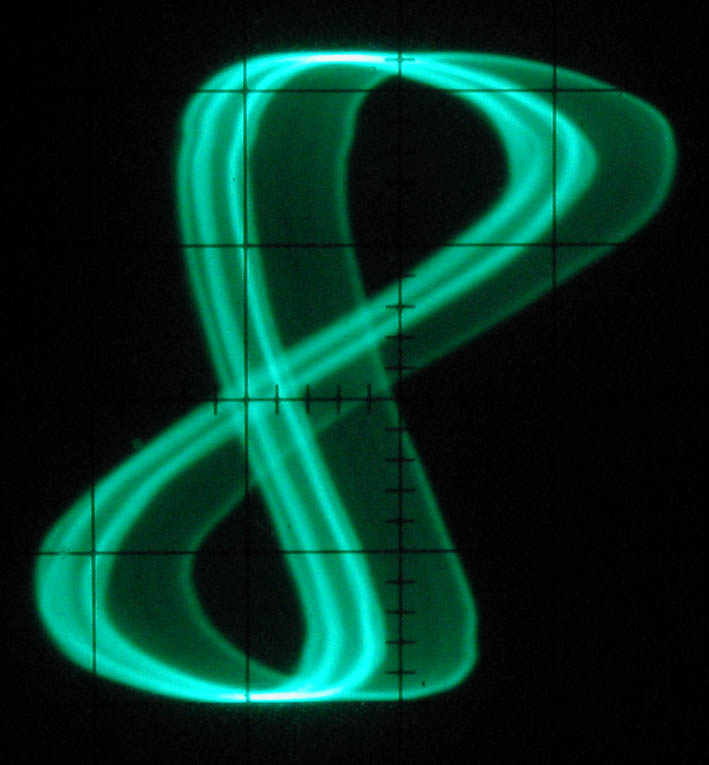

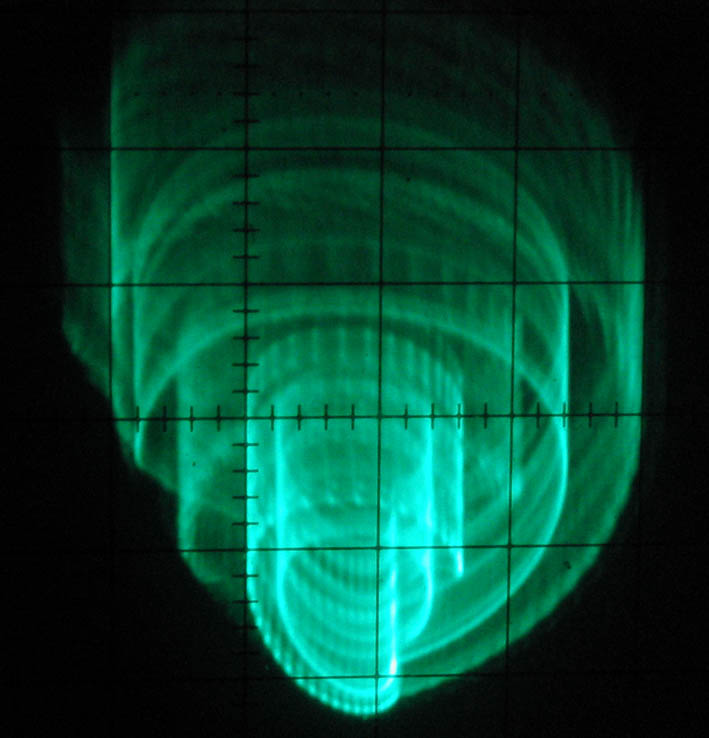

C2=100nF, L1 = 12mH, L2 = 570mH, R = 100
