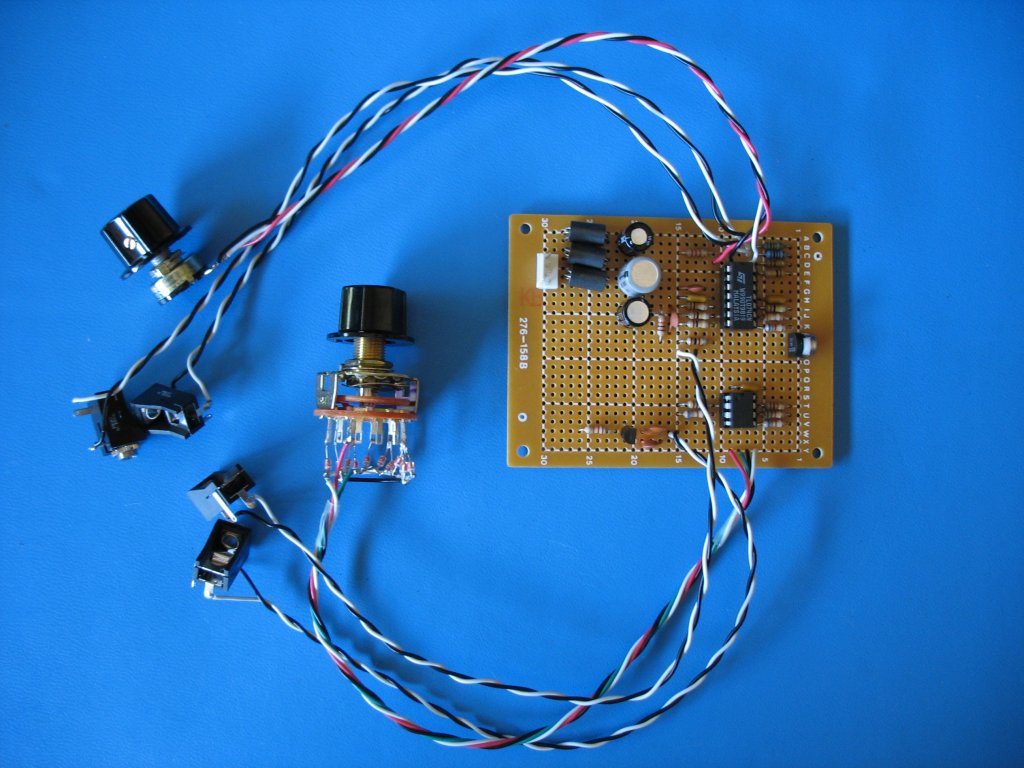

Digital VCO

The waveforms are:

Samples

• Sine Sweep This is the sine waveform swept across the full range. Listen for aliases - there aren't too many in the lower frequency range.
• Triangle Sweep The triangle waveform swept across the full range. There are a few more aliases audible than in the sine.
• Square Sweep The square waveform swept across the full range. There are lots of aliases due to phase jitter on the fast edges.
• Saw Sweep The sawtooth waveform swept across the full range.
• Pulse Sweep The pulse waveform swept across the full range.
• Random Pulse Sweep The random pulse waveform swept across the full range. Notice how it fades from a thin tone to pure noise.
• Noise Sweep The noise generator swept across the full range. Kinda reminds me of Atari Star Raiders.
• Double Pulse Sweep Ian Fritz's double-pulse waveform swept across the full range.
• Sine Sync The sine waveform swept up and down while hard-syncing to the sawtooth in my PAiA9700.
• Double Pulse Sync The double pulse waveform swept up and down while hard-syncing to the sawtooth in my PAiA9700.

These were all recorded through a mixer and a USB A/D on a Mac with Felt-tip Sound Studio. Note that these are plain .WAV files and thus rather large. I tried using lame to encode them as .MP3, but the results weren't very much like the original.

Design Files

PSoC Designer project files

Schematic

Matlab scripts for lookup tables

Theory of Operation

• Control Voltage Summer and Scaler.

  Two 0-10V 1V/Octave control voltages are summed with a pitch offset control voltage using an ordinary inverting summation. The pitch offset is just a 10k pot with a 2k resistor on the top end to keep the output voltage in the 0-10V range with a 12V supply voltage. The two external CV connections are summed with 1% resistors to keep them scaled identically. The feedback resistor need not be 1% since the overall gain is set with an adjustment in the next stage.

  Since the summation stage is inverting, we need to invert again to restore the sense of direction. Also, there's a gain of ~1/2 to get the 0-10V range down to 0-5V required by the PSoC ADC input. The gain of this stage is set with a trimmer pot to allow calibration after assembly. To reduce the sensitivity of the calibration, the feedback resistance is a combination of fixed and variable resistors.

  Note that the control voltage sum may exceed 5V even after scaling, which could exceed the input voltage range of the PSoC. A 10k resistor is in-line between the op-amp and PSoC to limit the input current and allow the PSoC ESD diodes to clamp the input voltage.

• Sync edge detector.

  Hard synchronization is accomplished by detecting the falling edge of the sync input and generating a 20 microsecond positive pulse. A 0.003uF capacitor coupled with 12k resistance and the base impedance of a 2N3906 PNP transistor meets this requirement. An additional 0.001uF capacitor prevents oscillation of the 2N3906. The resulting 5V pulse feeds to the Port0_3 input of the PSoC where it is detected during the DAC update ISR.

• PSoC

  The CY8C24123A-PXI is the lowest-end member of the Cypress PSoC product line and contains the following resources:
  • 8-bit MCU
  • 4k bytes flash memory
  • 256 bytes RAM
  • System clock generator
  • 6 Analog blocks
  • 4 Digital blocks
  • 8x8=>32 MAC
  • I2C logic
  • Decimator
  • SAR logic
  • 6 GPIO pins (2 Analog outputs possible)

  The Digital VCO uses 95% of the flash memory, all of the digital blocks, 4 of the 6 analog blocks, the MAC, the decimator and all of the GPIO. The digital and analog blocks are divided among four user modules (Cypress' terminology for their hardware macro functions):

  • PGA

    This is a programmable gain amplifier which is used as an input buffer on the ADC input. There are a wide variety of gains possible for this module, but it is set to 1.0 for this design. This function uses one continuous-time analog block.

  • DELSIG11

    This is an 11-bit Delta-Sigma ADC. It is run at a clock rate of 250kHz which gives an output data rate of about 244Hz. It uses one digital block and one discrete-time analog block, as well as the decimator.

  • DAC9

    This is a 9-bit charge-transfer DAC. It is run at a clock rate of 250kHz which gives an output sample rate of 62.5kHz. It uses two discrete-time analog blocks, as well as the analog column interrupt. Note that although it is specified for 9-bit resolution, this design actually feeds it 11 bits of data. The differential non-linearity is not guaranteed by Cypress for this mode of operation, but it seems to help.

  • PRS24

    This is a 24-bit pseudo-random sequence generator. It is run at a clock rate of 250kHz, which means the sequence will repeat approximately every 67 seconds. The random and random-pulse waveforms use this function as a source of uncertainty.

  Running on the MCU is a fairly simple program which consists of a main routine that initializes the hardware blocks and then enters a loop waiting for the ADC results. When a new ADC sample is available, it is converted to an exponential frequency and saved in the DDS frequency register. After updating the frequency value, the waveform select pins are sampled and the waveform jump address is updated.

  The exponential conversion calculation converts the 11-bit ADC samples into 24-bit frequency words for the NCO (numerically controlled oscillator). It does this by first scaling the 11-bit value so that there are 256 lsbs per volt, then using the bottom byte of the result as an index into a fractional exponent table. The output of this lookup operation is then scaled by integer powers of two using the value in the top byte of the scaled ADC value. The PSoC's 8x8 MAC is very useful in these calculations, which provide an exponential response that is within 0.5% of ideal.

  There are two ISRs running in the background: The first is the DELSIG11 ISR which handles housekeeping functions for the ADC and is automatically generated by the PSoC Designer application. The second ISR is in sync with the DAC update rate and ensures that new samples of digital data are always available for the DAC. Part of this routine's task is to update the NCO which provides the address into the waveform tables.

  The DAC update ISR contains 8 distinct waveform computation routines, one for each unique waveform. The sine, triangle and sawtooth waveforms all use 256-entry 16-bit lookup tables which contain the 11-bit DAC data as well as control bits for the DAC so they don't have to be computed in the ISR. The square, pulse and double-pulse waveforms are computed based on the msbs of the NCO phase. The random waveforms are triggered by the overflow of the NCO and read random data directly from the top two bytes of the PRS24 module.

  The PSoC is clocked by its on-chip master clock which is factory-trimmed to run within 2.5% of 24MHz. Using an external 32768kHz crystal it would be possible to ensure 3ppm frequency accuracy, but that would use up two of the GPIO pins, and the sync and waveform select functions were felt to be more important.

• Output Signal Conditioning

  The DAC output is filtered with a 2nd-order active filter that has a corner frequency of about 16kHz, well below the 31.25kHz Nyquist frequency of this system. The filter has a gain of 2, as well as a DC offset which provides an output signal that swings over a range of -5V/+5V. A 1kohm output resistor provides some isolation from external short-circuits or ESD events.

Design Notes

Aliasing

The main thing to remember is that when you're generating signals with sharp transitions at low sampling rates, the aliases are going to hit you hard. There are a number of techniques for reducing or controlling this effect, but they unfortunately require either lots of computation or lots of memory, neither of which are available on this particular PSoC. Using a higher-end chip with more flash memory it might be possible to do multiple wave-tables with band-limited waveforms. In this technique, the frequency computation routine would also generate a pointer to the wavetable which is dependent not only on the waveform selection, but also on the current frequency. I'll probably play around with this for a future version of the firmware.

For more details on this, see Dr. Aaron Lanterman's series of lectures on Synthesis. He has an excellent discussion of digital oscillators here: Alias-free synthesis of classic analog waveforms; digital state variable filters (Warning: this is a ~200MB RealMedia file).

PSoC Architecture

The hardware capabilities are truly stunning though, especially the analog modules. Using just three unique blocks they've cooked up a broad range of functions that, while primarily targeted at low-speed signal conditioning and data acquisition, can be pushed into audio-speed DSP. The digital blocks are useful as well, although I would have loved to see one additional function: an accumulator for quick computation of NCOs would have been a really nice additional feature.

Additional Possibilities

• Low Frequency Oscillators
• Envelope Generators
• Quantizers
• Arpeggiators
• Midi-CV converters
• Etc

I'll probably be exploring some of these in the future.

Power Supplies

If no +5V is available, a standard LM7805 type regulator may be used on the +12V line to provide power for the PSoC. Since the PSoC and it's associated circuitry draw very little current (I measured 19mA), an LM78L05 might be used to reduce size.

Tools and Resources

Cypress provides PSoC Designer free of charge. It's a decent integrated development environment (IDE) which allows you to pick and place the hardware functions you want, configure them and link them into the firmware. After you've specified the hardware, you can write the firmware and debug it. The free version provides only assembly language support with no real debugging, but it can be augmented with a C compiler and In-Circuit Emulation (ICE). For this project, I found that assembly language was more than adequate, and I didn't need the ICE. Instead of spending $700+, I just routed debugging signals out to GPIO pins to monitor internal conditions.

There are over two hundred PSoC application notes available at Cypress' website. These cover both hardware and firmware topics and a wide variety of target applications.

Programming the PSoc requires special hardware. I used the CY3210-Miniprog1 which is available for a reasonable price from Digi-Key. It's a pretty good deal, and includes several of the high-pincount PSoC devices which are useful for developing complex applications.

Acknowledgements
